Design of Frame –  Build diameter, horizontal extrusions length, diagonal rod length calculation.

The frame design depends mainly on build diameter.

Based on that value, horizontal extrusions is determined taking into account how big is your effector plate, how tall is your linear carriage from the plane of your tower and what is your desired offset from the belts when your effector is close to the tower.



I am attaching my handwritten calculation notes as images. It is based on simple trigonometric calculations. I hope it is self-explanatory. If it is not clear, let me know in the comments. I will try to clarify it.

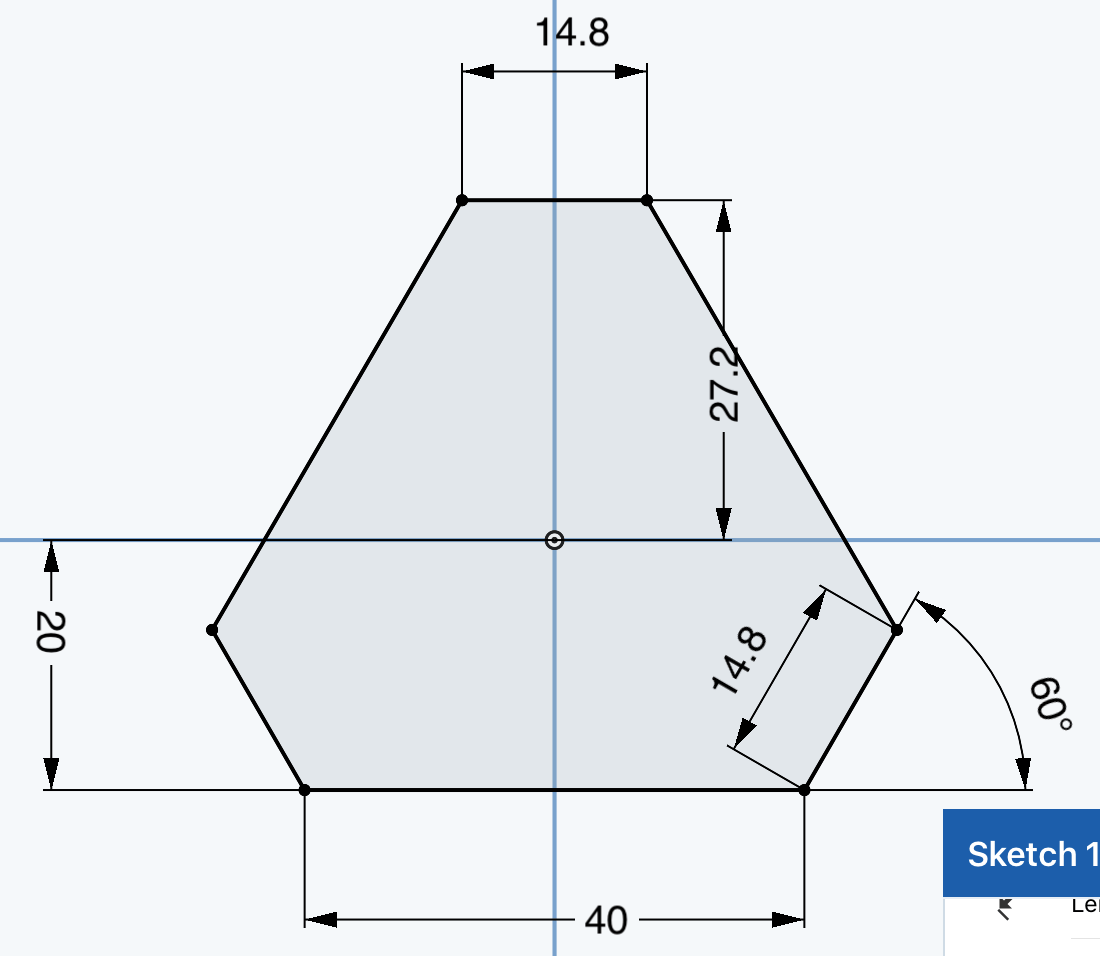

I measured the outline of triangular extrusions that will be used for vertical towers and sketched it in onshape. I will be using these values for further calculations in this post. Here is the sketch:




If you look from top, the extrusions along with build plate will be arranged as shown below:

Delta Frame Sketch 2

The picture on the right shows the top view of the delta printer with corresponding distances. 15 mm is the width of truncated flat portion of the triangle. If the edges are extended, it will form a small equilateral triangle of 15mm side. The height of this small imaginary triangle from the imaginary tip is 13mm. This imaginary tip is where the horizontal extrusions will meet if extended to form 60 degrees angle. The height of triangular extrusions is 47mm from the base of the triangle to the flat truncated portion. For clarity, please refer to the original sketch and the handwritten note below.

The hypotenuse is the length of the line from the imaginary tip of the triangle to the centroid of the triangle (where all the altitudes meet). This centroid will be the centre of the build plate. The tower plane (base), i.e one of the faces of the triangular extrusion is 60mm (13mm from the imaginary tip of small triangle plus 47mm, the height of the extrusion) from the imaginary tip of the equilateral triangle. Look at the hand drawn figure.


My linear carriages are 24mm total height (including rails) from the tower plane. The belts are 6mm height (my printed carriage adapter thickness for holding the arms are 6mm from the linear carriages). I assumed an effector offset of 40mm. I added a 10 mm clearance so the effector does not hit the belt.

If you subtract the values of tower plane offset, carriage offset, effector offset and your allowance for clearance from your hypotenuse you will get the build radius. I wanted a build radius of 150mm radius. This value gives me an approximate hypotenuse of 290mm. Based on these value and the geometry of the equilateral triangle formed by horizontal and vertical extrusions, I get a horizontal extrusion length of 474mm.

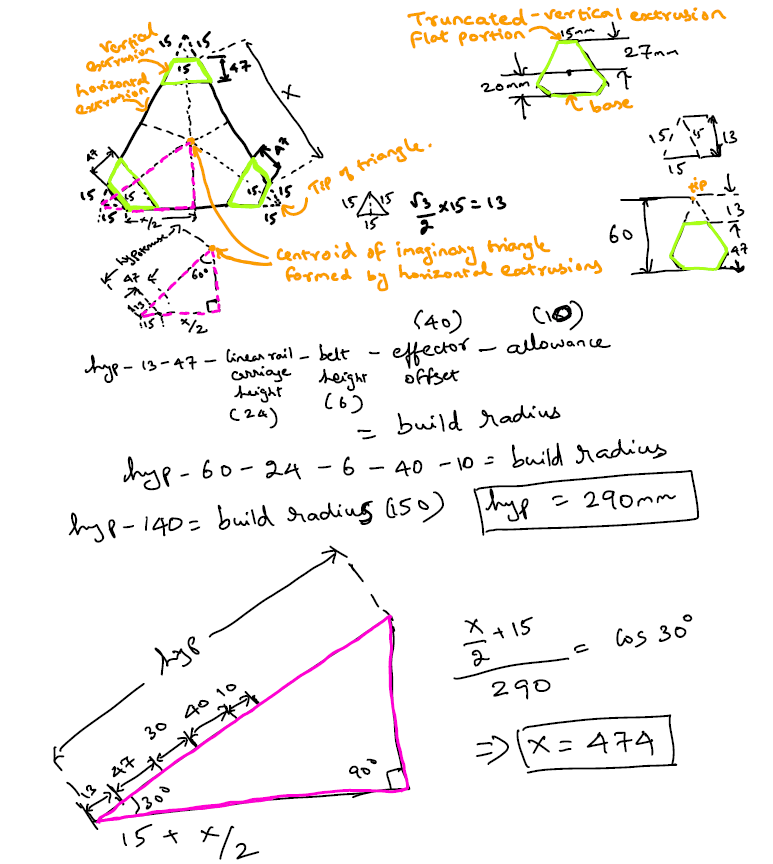

First Page Color



As a sanity check, I used a build radius of 145mm (290mm diameter Kapton heater) that should lie within the horizontal extrusion for insulation purposes. I used this radius value to calculate the length of horizontal extrusion.

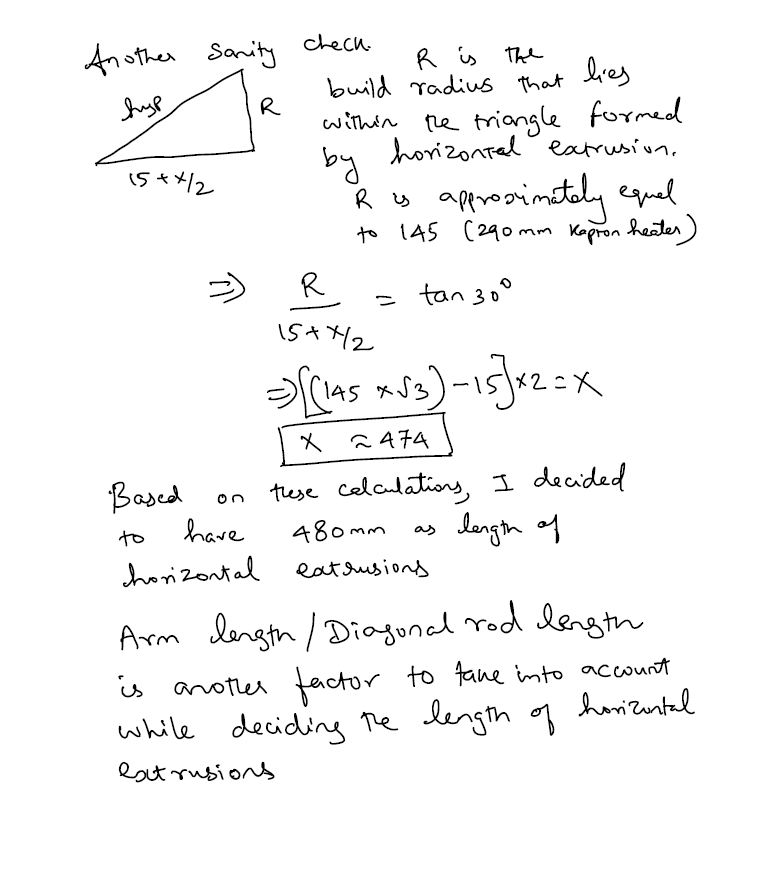

Second Page

Horizontal extrusion length is preliminarily chosen as 480mm. The reason it is preliminary is because of the diagonal arm length. They need to be taken into account while deciding extrusion length.

The diagonal arm length is based on two rules:

Rule 1: The diagonal arm should form 60 degrees with the horizontal plane when the effector is centred

Rule 2: When the diagonal arm is farther from its tower (when the effector is at the edge of build radius), it should form at least 22 degrees with the horizontal

If our horizontal extrusion length and chosen diagonal arm length satisfies these two criteria then we are fine.

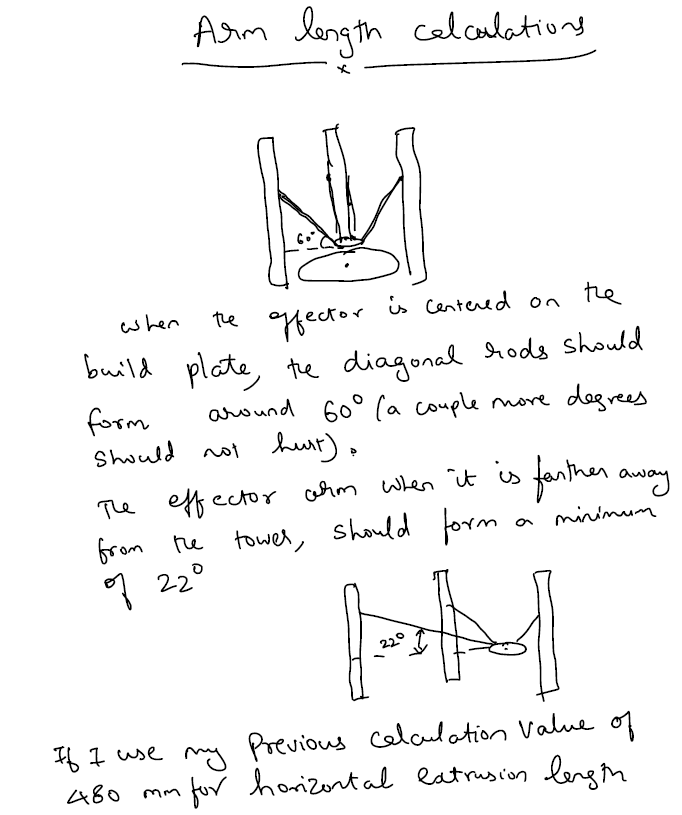

Third Page

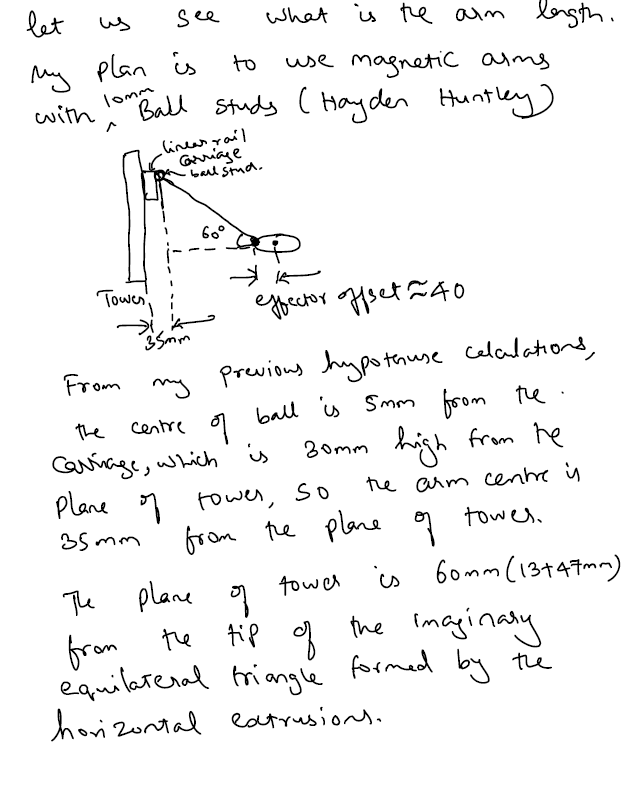

Fourth Page

Fifth Page



Sixth Page

Seventh Page

Based on my notes and calculations, I decided on 480mm long extrusions and 360 mm long diagonal arms.

Hope you could follow my rationale for the frame design for my delta. If you find any mistakes, please feel free to leave a comment. If you need some clarification, please comment or contact me.

I plan to use 350mm diameter aluminium tooling plate within the triangle base. Just to check the interference, I made a quick 3D model of horizontal and vertical extrusions and build plate in onshape and assembled them. Here is the link to the file:

https://cad.onshape.com/documents/93ab47c288d8d96207efadab/w/cad6db538a89bc24e38bddc6/e/e7e26ebbc6c7ee552a1f587a

In the next post, I will talk about the frame assembly.
